This motherboard is intended for engineers and factory managers with experience in electronics. You can check the display definition and configure the corresponding software information by yourself.



This motherboard is a super DIY player with customizable features.



Zhichuang Times adopts the video, picture, and music advertising playback (video greeting card) scheme designed by the Haiqi B200 main control, and supports the boot within 3S.

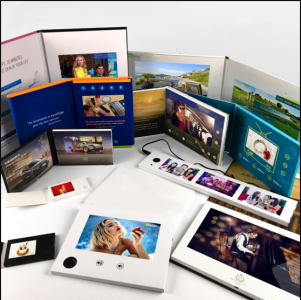

The main application scenarios of this product:



1: Automobile Factory Business Promotion Plan 2: Real Estate Business Promotion Plan (Villas, Commercial Centers)



3: Tourist attraction souvenirs, scenery and attractions promotion plan 4: Luxury brand promotion plan



5: Government Investment Promotion Handbook (Introduction to Urban Planning and Market Prospects) 6: High-end video gift box



7: Instruction manual for high-end products 8: High-end wedding invitation



9: Strip screen shelf display 10: Display shelf video promotion



11: DIY video player 12: Parking lot QR code display



Advantages of this solution:



1: CPU and DDR2 frequency up to 800M, faster speed 2: TF card capacity change fast, faster delivery speed (rejection of second-hand FLASH).



3: PMU power management, quiescent current as low as 25uA 4: External watchdog, double protection



5: 2W large amplifier drive, louder sound 6: The display screen can modify the tool configuration by itself, and the shipment is one step faster



7: USB copy can be updated software, more convenient to use 8: The key function is user-definable



9: Seamless switching between videos (no black screen) 10: Support video playback in landscape and portrait mode



11: Support 320*240 to 1920*1080 display (peers only support up to 1280*800)
